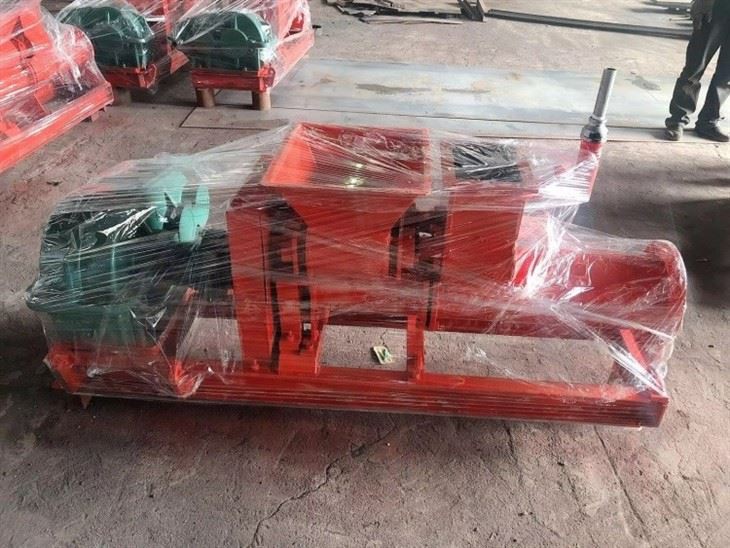

Nqus Pug Mill





Lub tshuab nqus tsev pug zeb tshuab yog cov khoom siv kho tshuab rau lub tshuab nqus tsev vacuum ntawm ceramic blanks. Nws yog dav siv nyob rau hauv ceramic industrial ntau lawm los npaj yas blanks los ntawm ntxhib sib tsoo thiab zoo sib tsoo. Txij li thaum lub tshuab nqus tsev twj tso kua mis thiab lub tshuab nqus tsev twj siv slurry ua ke, tom qab sib tov thiab extrusion, cov yas slurry yog extruded rau hauv nyias strips los ntawm daim phiaj phaj, thiab ces nkag mus rau hauv lub tshuab nqus tsev chamber rau nqus degassing.



Qauv	SL -170	SL -185	SL -250
Lub cev muaj zog	7.5kw 2 kw	18.5kw +4kW	22kw +4kW
Muaj peev xwm	1-2T/H	2-4T/H	3-5T/H
Zoo thiab loj	customized	customized	customized
Qhov hnyav	600 kg	750kg ua	950kg ua
Dimension	1815 * 905 * 920mm	2150 * 800 * 1400 hli	2400*1200*1100m





Lub tshuab nqus tsev pug no yog tsim los ntawm lub cev muaj zog, reducer, lub tog raj kheej, lub tog raj kheej kheej kheej, seamless steel yeeb nkab nrog txoj kab uas hla ntawm 273, kauv rotor, conical cover, bracket, thiab puag. Lub reducer feem txais yuav ib qho kev txo qis hauv ob theem uas cov spur iav koom tes nrog cov cab iav thiab cov iav iav. Lub hauv paus thiab bracket yog welded nrog 12 # channel steel. Lub kauv rotor yog ua los ntawm 80 hli txoj kab uas hla seamless steel yeeb nkab thiab 6 hli steel phaj forging thiab vuam. Lub qhov hluav taws xob ntawm lub conical npog tuaj yeem ua los ntawm cov calibers sib txawv.



Lub tshuab nqus tsev pug zeb txhaj cov av nkos los ntawm qhov chaw nres nkoj pub. Cov av nkos yog thawj zaug dov thiab kneaded los ntawm cov ntsia hlau pub, tom qab ntawd dov thiab extruded los ntawm ob-axis ntsia hlau, thiab thaj tsam ntawm cov av nkos yog nthuav tawm los ntawm lub vijtsam phaj. Cov roj uas muaj thiab adsorbed yog muab rho tawm los ntawm lub tshuab nqus tsev twj tso kua mis, thiab cov av nkos raug thawb rau pem hauv ntej thaum degassed. Thaum nws mus txog lub tshuab nqus tsev, cov pa roj yog qhov pib tawm, thiab tom qab ntawd nyob rau hauv lub zog thawb ntawm extrusion ntsia hlau, cov av nkos yog nyem rau hauv lub tog raj kheej ntawm lub tshuab taub hau, thaum kawg nyem tawm ntawm lub nozzle, thiab tom qab ntawd txiav mus rau hauv av. seem ntawm qhov yuav tsum tau loj los ntawm lub rooj rau cov menyuam.
